คุณสมบัติ | รายละเอียด |
---|---|
Coil Voltage | 230 V ac |
Number of Poles | 3 |
Contact Voltage Rating | 690 V ac |
Contact Current Rating | 7 A |
Power Rating | 4 kW |
Series | AF |

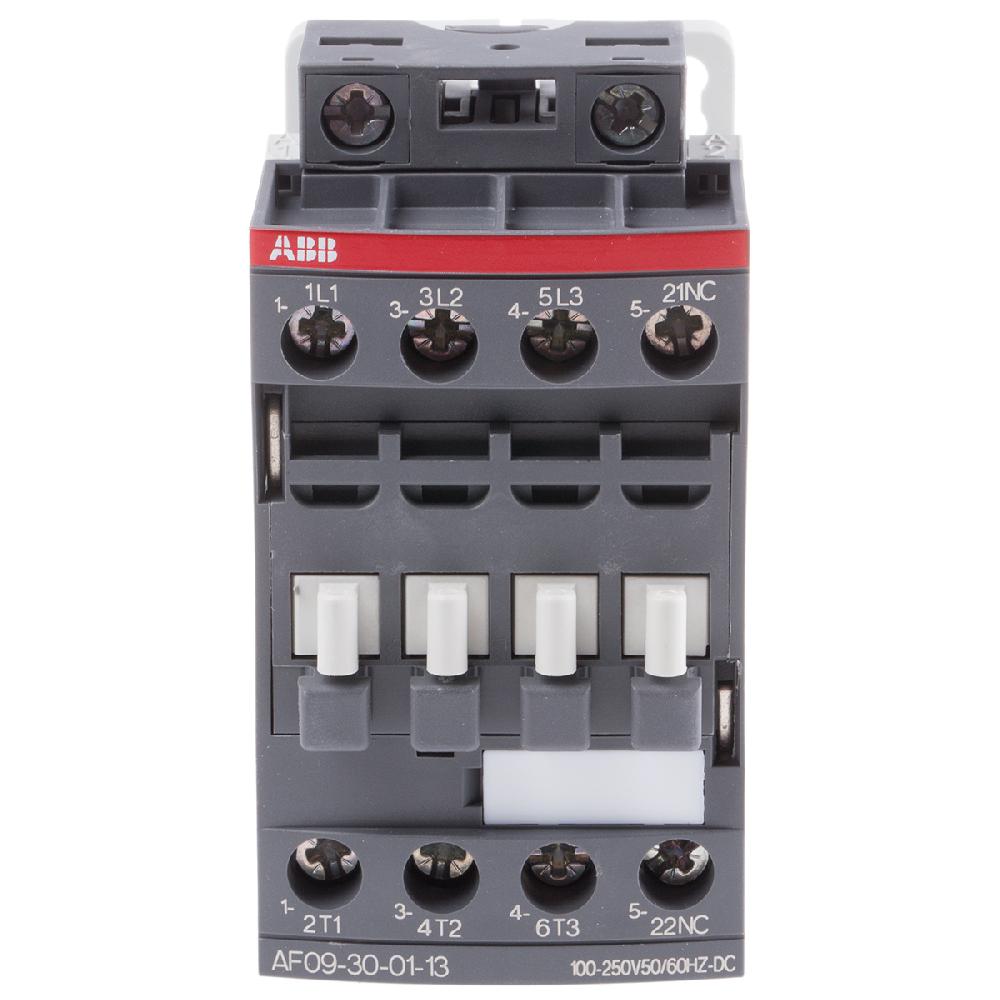

Range | AF09-30-01-13 |
Normal State Configuration | 3NO |
Number Of Auxiliary Contacts | 1 |
Auxiliary Contact Configuration | 1NC |
Terminal Type | Screw |
Width | 45mm |
Length | 86mm |
Depth | 77mm |
Control Voltage | 100 → 250 V |
Pole and Throw Configuration | 3P |
Maximum Operating Temperature | +70°C |
Mounting Style | DIN Rail Mount |
Minimum Operating Temperature | -40°C |
