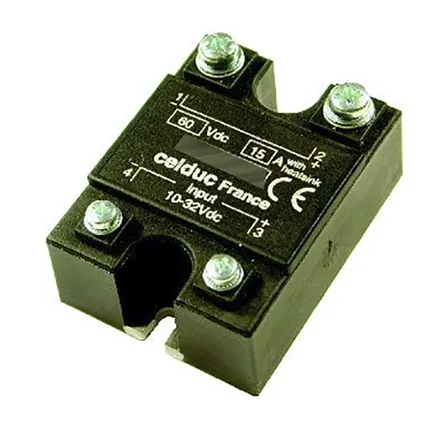

SCC20506
รูปภาพประกอบอาจเป็นรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ราคา / Price : Each
3,250.00 THB

จำนวนในสต็อก : 7 | in stock
มีของพร้อมจัดส่งภายใน 7-10 วันทำการ (In stock for delivery within 7-10 working days)

SCC relays are power relays for use with direct current. For switching direct loads on networks. The power element used on these relays is a double pole transistor.

Add Line
สแกนคิวอาร์โค้ดแอดไลน์ เพื่อสอบถามข้อมูลเพิ่มเติมจากฝ่ายขาย
คุณสมบัติ
รายละเอียด
Maximum Load Current5 A
Mounting TypePanel Mount
Maximum Load Voltage60 V dc
Minimum Load Voltage2 V dc
Maximum Control Voltage32 V dc
Minimum Control Voltage10 V dc
Switching TypeDC
Control Voltage Range10 → 32 V dc
Minimum Load Current5 mA
RangeSCC
Number of Poles2
Terminal TypeScrew
Output DeviceBipolar Transistor
Relay TypeDC
Load Voltage Range2 → 60V dc
Maximum Turn On Time0.2ms
SeriesSCC
Dimensions44.5 x 58.2 x 27mm
Special FeaturesBipolar Transistor DC Output
Off State Leakage Current1 mA
Length44.5mm
Minimum Operating Temperature-40°C
Operating Temperature Range-40 → +80°C
Standards MetCE
Maximum Operating Temperature+80°C
Height27mm
Depth58.2mm
