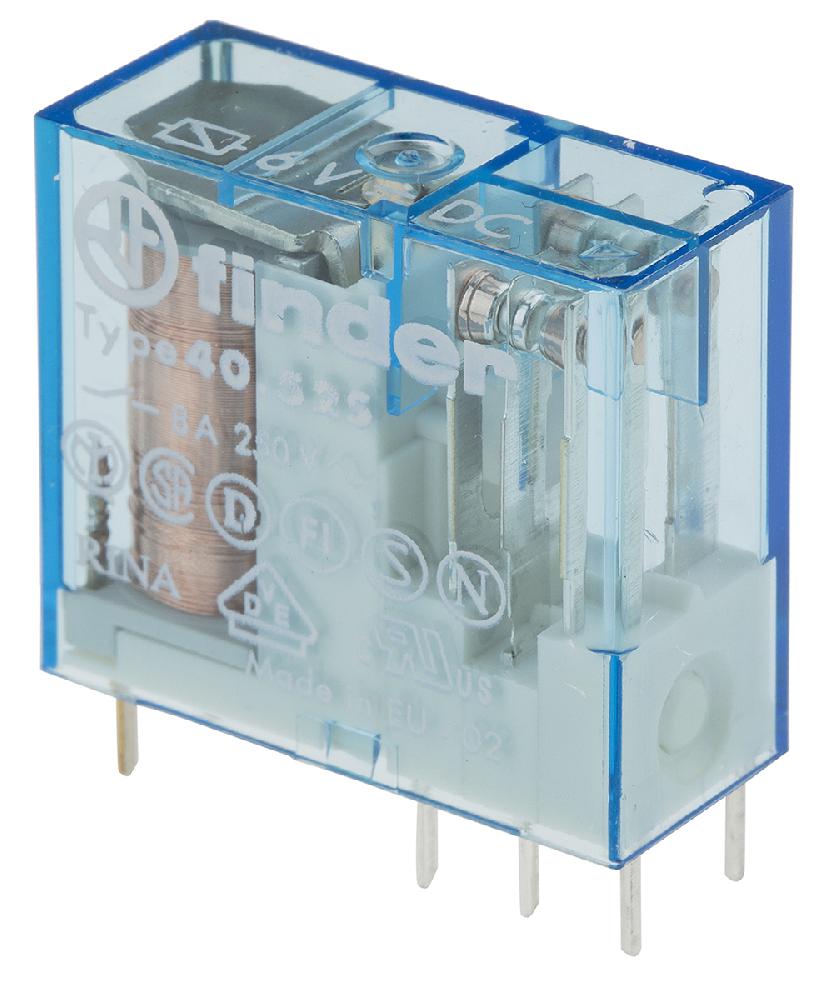

คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 6V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Through Hole |
| Maximum Switching Voltage AC | 400V ac |
| Length | 29mm |
| Coil Resistance | 75 Ω |
| Coil Power | 500mW |
| Height | 25mm |
| Depth | 12.4mm |
| Minimum Operating Temperature | -40°C |
| Series | 40 Series |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 6kV |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 2 kVA |
| Application | PCB |
