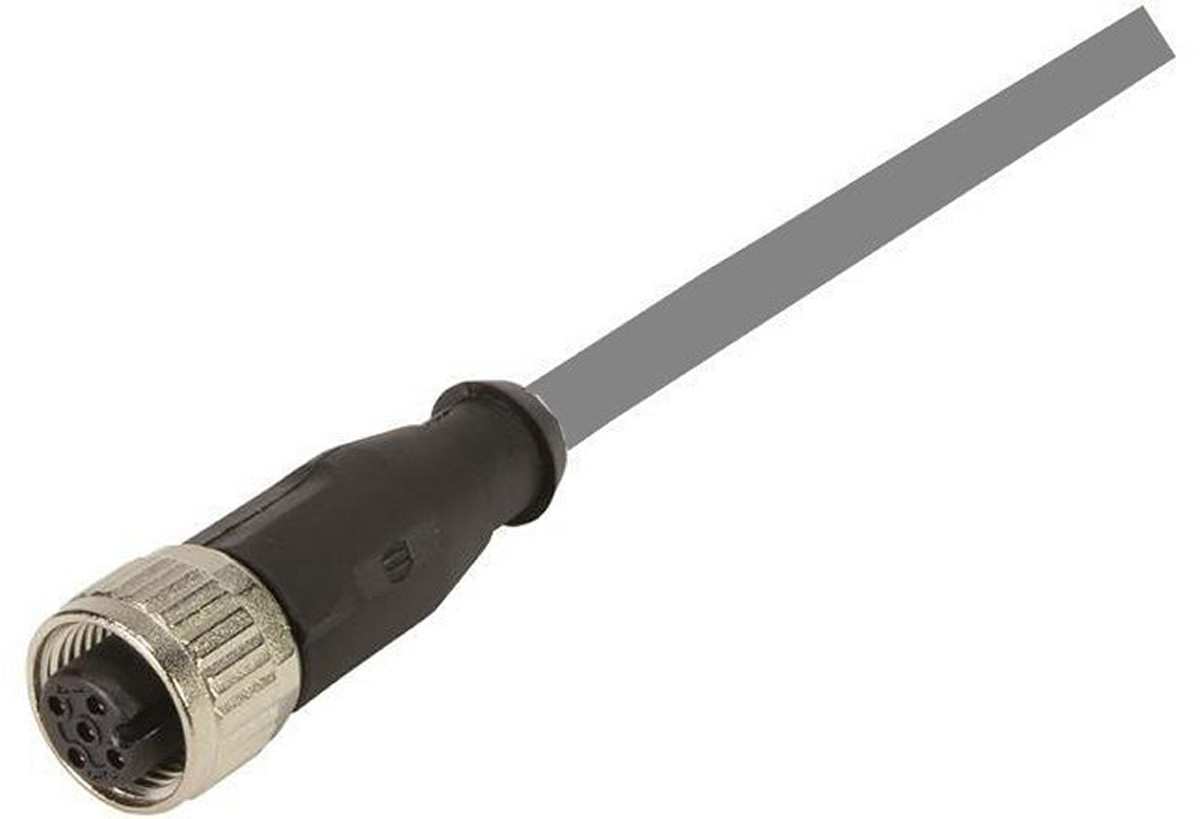

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | 2134 |
| Number of Cores | 12 |
| Cross Sectional Area | 0.14 mm² |
| Length | 1m |
| Sheath Material | Polyurethane PUR |
| Sheath Colour | Grey |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 12 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Straight |
| Connector 2 Housing Gender | Male |
| Connector 2 Number of Contacts | 12 |
| Connector 2 | M12 |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| IP Rating | IP67 |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 - +80 °C |
| Cable Shape | Multicore |
| American Wire Gauge | 26 AWG |
| Connector 1 Housing Gender | Female |
| Maximum Operating Temperature | +80°C |
