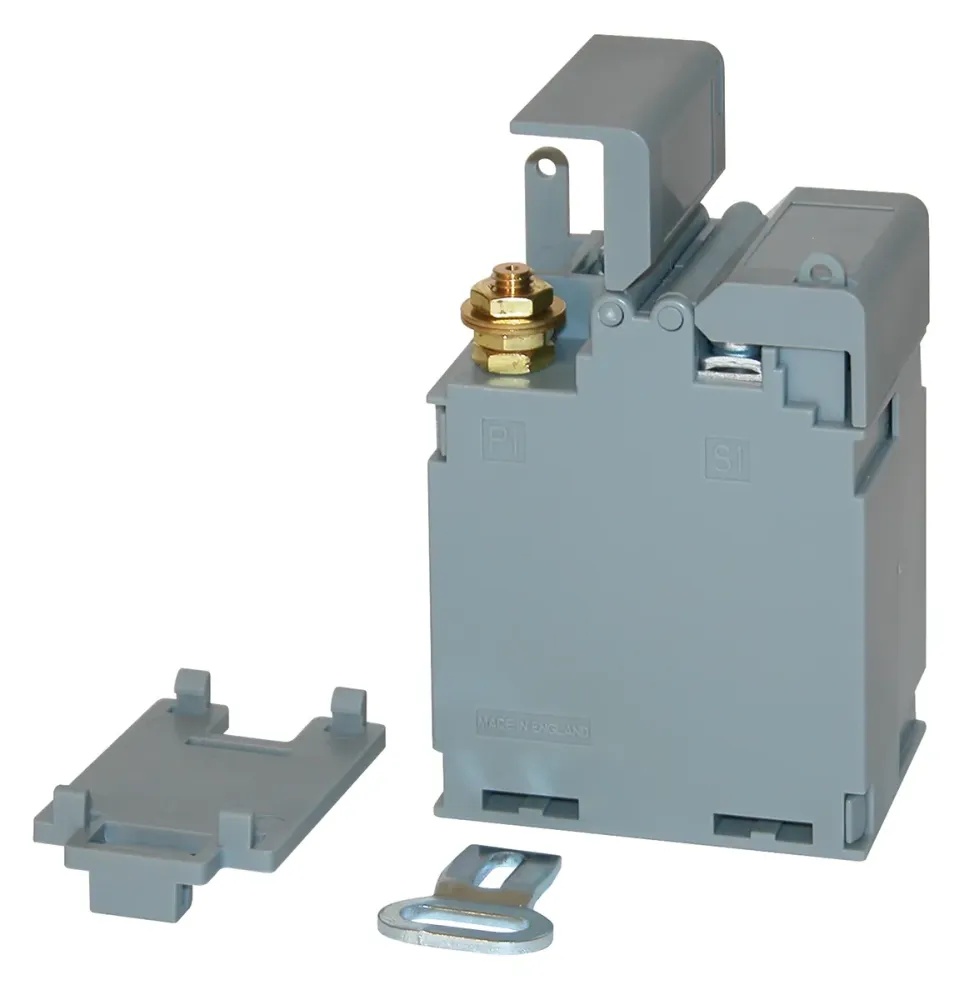

A range of compact moulded case current transformers suitable for primary currents from 1A to 50A. The 160 Series of current transformers are supplied with built-in terminal covers and M6 screw terminals for primary current connection. The current transformers are for transforming various primary currents into 5A or 1A standard secondary.
• Built-in sealable terminal covers
• Mounting feet supplied
• DIN Rail mounting clip supplied
• Narrow width- 60 mm
• Rated system voltage 0.72/3 kV
• Continuous current- 1.2 x rated current
• Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
คุณสมบัติ | Value |
---|---|
Minimum Temperature | -30°C |
Maximum Temperature | +85°C |
Dimensions | 60 x 43 x 85 mm |
Mounting Type | DIN Rail |
Series | Series 16 |
