คุณสมบัติ | รายละเอียด |
---|---|
Coil Voltage | 12V dc |
Contact Configuration | SPDT |
Mounting Type | PCB Mount |
Switching Current | 20A |
Number of Poles | 1 |
Latching | No |
Terminal Type | PCB Pin |
Maximum Switching Voltage AC | 277V |
Maximum Switching Voltage DC | 30V dc |
Maximum Switching Current DC | 20 A |
Maximum Switching Current AC | 20 A |
Length | 29mm |
Coil Resistance | 275Ω |
Coil Power | 720mW |
Contact Material | Silver Alloy |
Depth | 13mm |

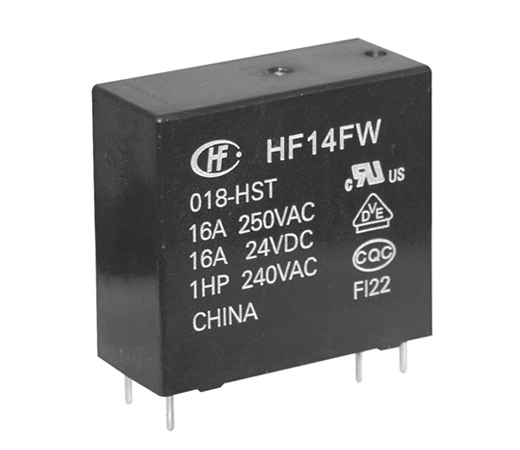

Series | HF14FW |
Minimum Operating Temperature | -40°C |
Isolation Coil To Contact | 4kV |
Maximum Operating Temperature | +85°C |
Height | 26.5mm |
Life | 1 x 10^7 cycles |
Maximum Switching Power AC | 5.54 kVA |
Maximum Switching Power DC | 480 W |
