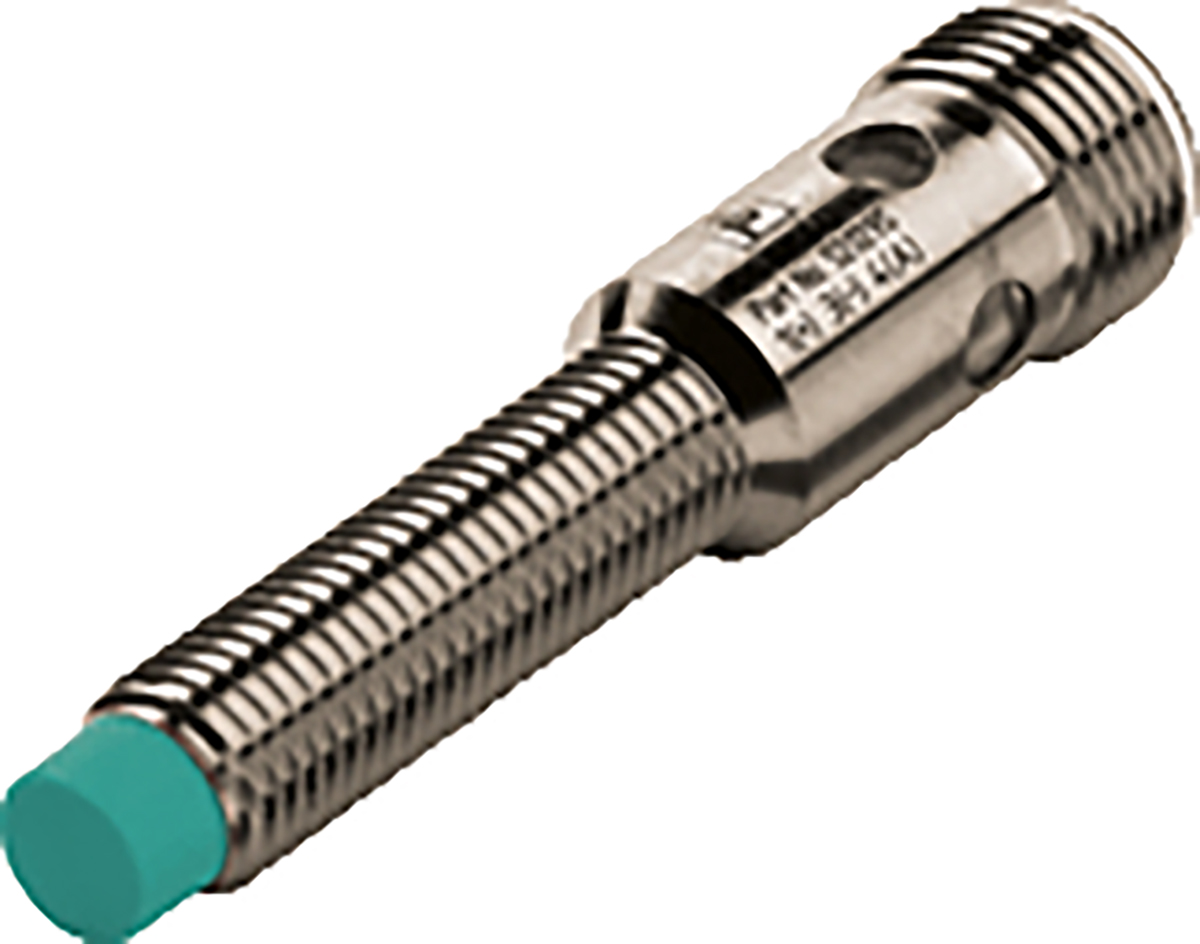

คุณสมบัติ | รายละเอียด |
|---|---|
| Thread Size | M12 |
| Sensor Technology | Inductive |
| Detection Range | 3 mm |
| Body Style | Barrel |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Connection Type | M12 |
| Supply Voltage | 5 - 30 V dc |
| IP Rating | IP67 |
| Length | 55mm |
| Mounting Type | Non-Flush |
| Width | 8mm |
| Housing Material | Brass |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Frequency | 4.5kHz |
| Shielding | Unshielded |
| Depth | 12mm |
| Short Circuit Overload Protection | Yes |
| Switching Current | 100 mA |
| Standards Met | CCC Certified, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1 |
| Switching Frequency | 4.5 kHz |
| Maximum Operating Temperature | +85°C |
| Reverse Polarity Protection | Yes |
