คุณสมบัติ | รายละเอียด |
|---|---|

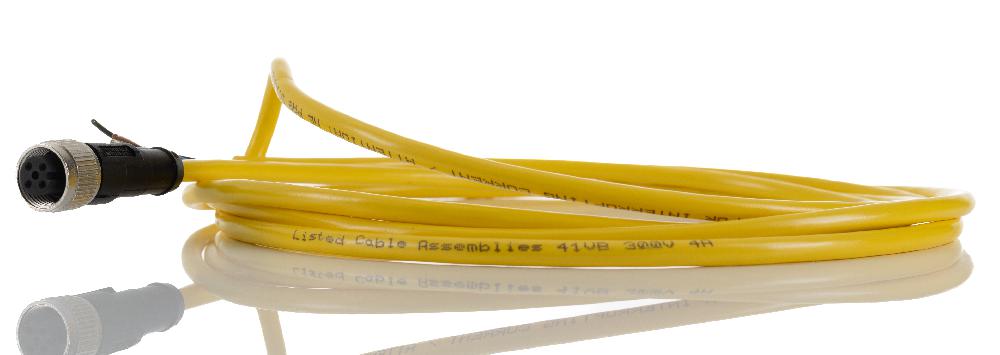

| Series | SAC-4P-2.0-542/ FS SCO BK |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Colour | Yellow |
| Sheath Material | PVC |
| Length | 2m |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 2 | Unterminated |
| Coding | A |
| Shielding | Unshielded |
| Armoured | No |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 300 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP68 |
| Insulation Material | PVC |
| Cable Shape | 4 Twisted Cores |
| Standards Met | cUL, UL |
| Minimum Operating Temperature | -30°C |
| Conductor Material | Tin Plated Copper Litz Wires |
| Minimum Bend Radius | 8 X D |
| Conductor Resistance | 50.5 Ω/km |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 14.8mm |
| Connector 1 Housing Gender | Female |
| Number of Strands | 4 |
| Maximum Operating Temperature | +105°C |
| Operating Temperature Range | -30 → +105 °C |
