คุณสมบัติ | รายละเอียด |
|---|---|

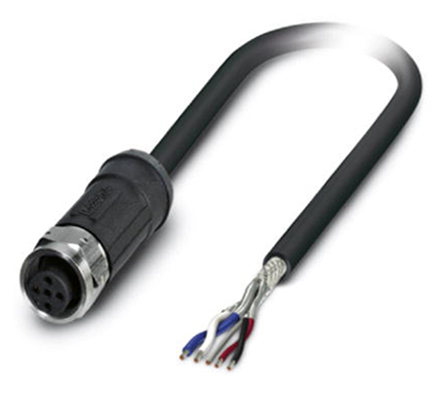

| Series | SAC-5P- 5.0-92X/M12FS SH OD |
| Number of Cores | 4 |
| Cross Sectional Area | (Signal) 0.25 mm², (Power) 0.34 mm², (Drain Wire) 0.38 mm² |
| Sheath Material | Flame Retardant Non-Corrosive FRNC |
| Length | 5m |
| Sheath Colour | Black |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 5 |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Shielded |
| Current Rating | 4 A |
| Voltage Rating | 60 V |
| IP Rating | IP65, IP67, IP68, IP69K |
| Conductor Resistance | 55 (Power) Ω/km, 90 (Signal) Ω/km |
| Insulation Material | PE |
| Characteristic Impedance | 120 Ω |
| Outer Diameter | 6.9mm |
| Core Strands | (Signal Line) 19 x 0.13 mm, (Voltage Supply) 19 x 0.16 mm |
| Connector 1 Housing Gender | Female |
| Number of Strands | 19 |
| Minimum Bend Radius | 10 x D (Flexible), 5 x D (Fixed) |
| Conductor Material | CuSn |
| Operating Temperature Range | -40 → +105 °C |
| Size of Strands | 0.13 (Signal) mm, 0.16 (Voltage Supply) mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Standards Met | IEC 60332-3-25, IEC 60512-11-4, IEC 61076-2-101 |
| Oil Resistant | Yes |
| Cable Shape | Multicore |
| American Wire Gauge | 22 AWG, 24 AWG |
