คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP7 |
| Isolation Voltage | 3kV dc |
| Width | 7.5mm |
| Depth | 12.2mm |
| Length | 19.6mm |

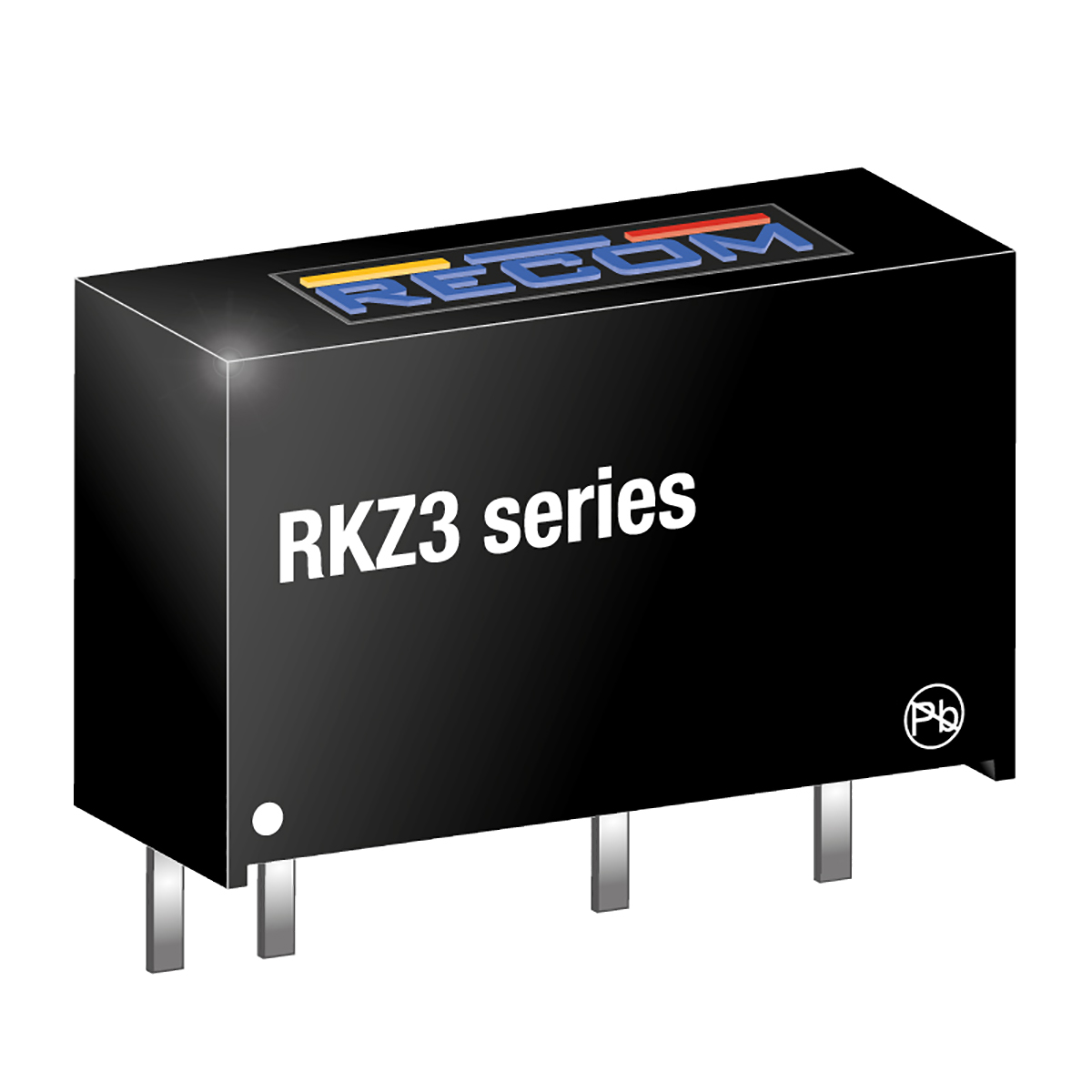

| Series | RKZ3 |
| Load Regulation | 0.1 |
| Standards Met | IEC/EN 62368-1 |
| Efficiency | 86% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +90°C |
