คุณสมบัติ | รายละเอียด |
|---|---|

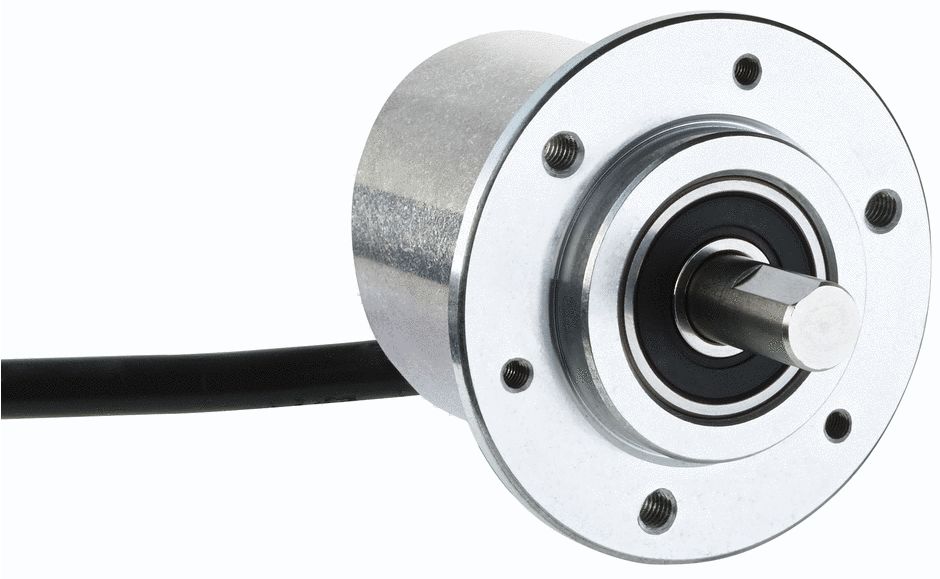

| Encoder Technology | Incremental |
| Series | DBS50 |
| Pulses Per Revolution | 360ppr |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | HTL |
| Shaft Type | Solid |
| Shaft Diameter | 8mm |
| Supply Voltage | 7 → 30 V |
| IP Rating | IP65 |
| Interface | Push-Pull |
| Overall Height | 35.5mm |
| Overall Width | 44.5mm |
| Overall Depth | 35.5mm |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Flange Mount |
| Maximum Operating Temperature | +85°C |
| Connection Type | Cable |
