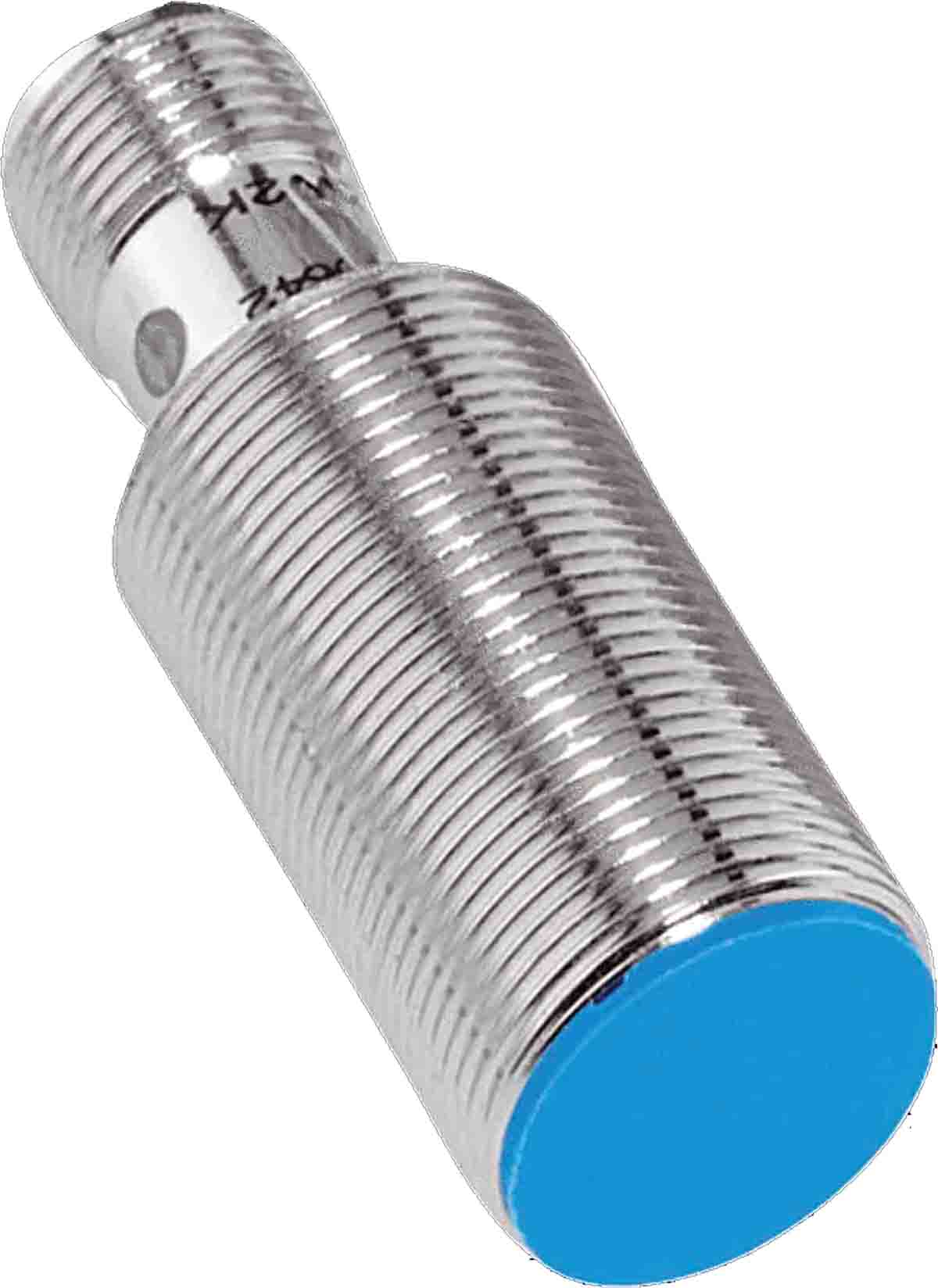

คุณสมบัติ / Specifications
คุณสมบัติ | รายละเอียด |
---|---|
Sensor Technology | Inductive |
Body Style | Barrel |
Thread Size | M18 x 1 |
Output Type | PNP Normally Closed |
Detection Range | 12 mm |
Terminal Type | 4-Pin, Connector M12 |
Supply Voltage | 10 → 30 V |
Length | 50mm |
Width | 18mm |
Maximum DC Voltage | 30V |
Mounting Type | Quasi-Flush |
Switching Current | 200 mA |
IP Rating | IP67 |
Housing Material | Metal |
Short Circuit Overload Protection | Yes |
Maximum Switching Frequency | 500Hz |
Reverse Polarity Protection | Yes |
Minimum Operating Temperature | -25 °C |
Maximum Operating Temperature | +75 °C |
