คุณสมบัติ | รายละเอียด |
---|---|

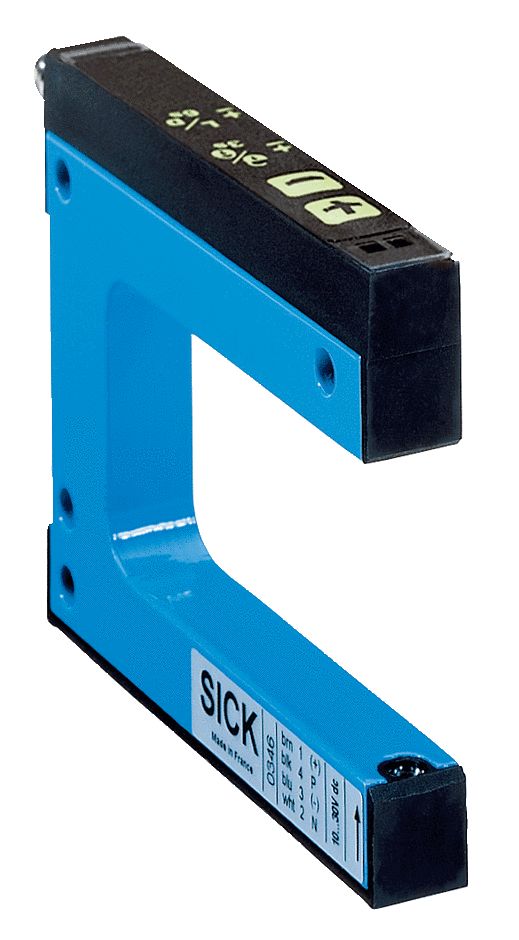

Sensor Style | Fork |
Detection Type | Fork Sensor |
Detection Range | 120 mm |
Output Type | PNP/NPN |
Switching Mode | Light / Dark switching |
Electrical Connection | M8 4 Pin Connector |
Maximum DC Voltage | 30V |
Communication Protocol | IO-LINK |
Terminal Type | 4 Pin Connector |
Light Source | LED |
IP Rating | IP65 |
Maximum Current | 100 mA |
Interface | IO-Link |
Response Time | 100 μs |
Housing Material | Aluminium, Metal |
Series | WF |
Mounting Type | Panel Mount |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Standards Met | CE, cULus |
