คุณสมบัติ | รายละเอียด |
|---|---|

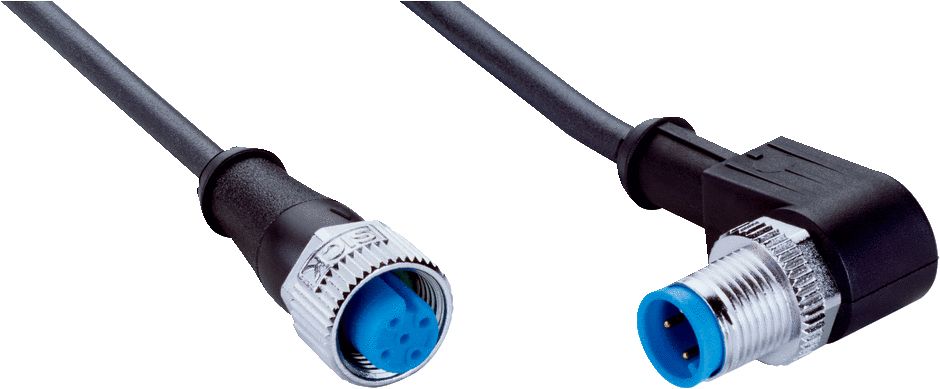

| Series | YF2A14 |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 4 |
| Sheath Colour | Black |
| Sheath Material | Polyurethane PUR |
| Length | 15m |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 4 |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 2 Number of Contacts | 4 |
| Connector 2 | M12 |
| Connector 2 Gender | Male |
| Connector 2 Orientation | Right Angle |
| Connector 2 Housing Gender | Male |
| Coding | A |
| Mounting Type | Plug-In |
| Shielded/Unshielded | Unshielded |
| Shielding | Unshielded |
| Current Rating | 4 A |
| Voltage Rating | 2.5 kV |
| IP Rating | IP65, IP66K, IP67 |
| Minimum Operating Temperature | -25°C |
| Fire Behaviour | Flame Retardant |
| Cable Shape | Round |
| American Wire Gauge | 22 |
| Oil Resistant | Yes |
| Standards Met | IEC 60332-1, UL 1581 FT2 |
| Outer Diameter | 4.5mm |
| Minimum Bend Radius | 45 mm |
| Operating Temperature Range | -25 - 80 °C |
| Maximum Operating Temperature | +80°C |
| Connector 1 Housing Gender | Female |
