คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 24 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 400 V ac |
| Contact Current Rating | 12 A |
| Power Rating | 5.5 kW |

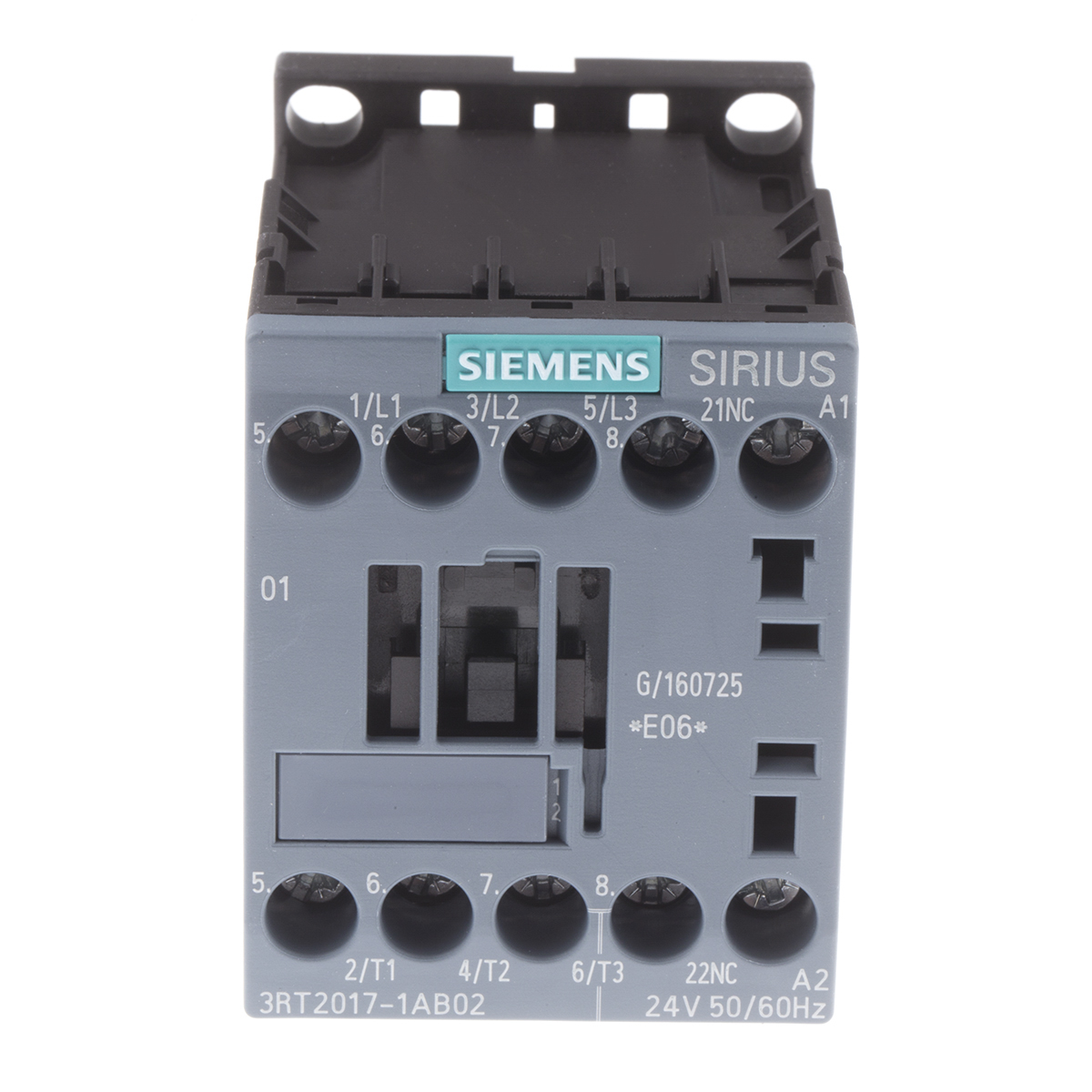

| Range | SIRIUS |
| Series | 3RT2 |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 45mm |
| Length | 57.5mm |
| Depth | 73mm |
| Better World Claim | Low carbon manufacture |
| Better World Product | Yes |
| Control Voltage | 24 V ac |
| Mounting Style | Screw Mount, Snap-on Mount |
| Minimum Operating Temperature | -25°C |
| Pole and Throw Configuration | 3P |
| Load Current | 11A |
| Maximum Operating Temperature | +60°C |
