คุณสมบัติ | รายละเอียด |
|---|---|
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 3 |
| Sheath Material | Polyurethane PUR |
| Length | 1.5m |
| Sheath Colour | Black |

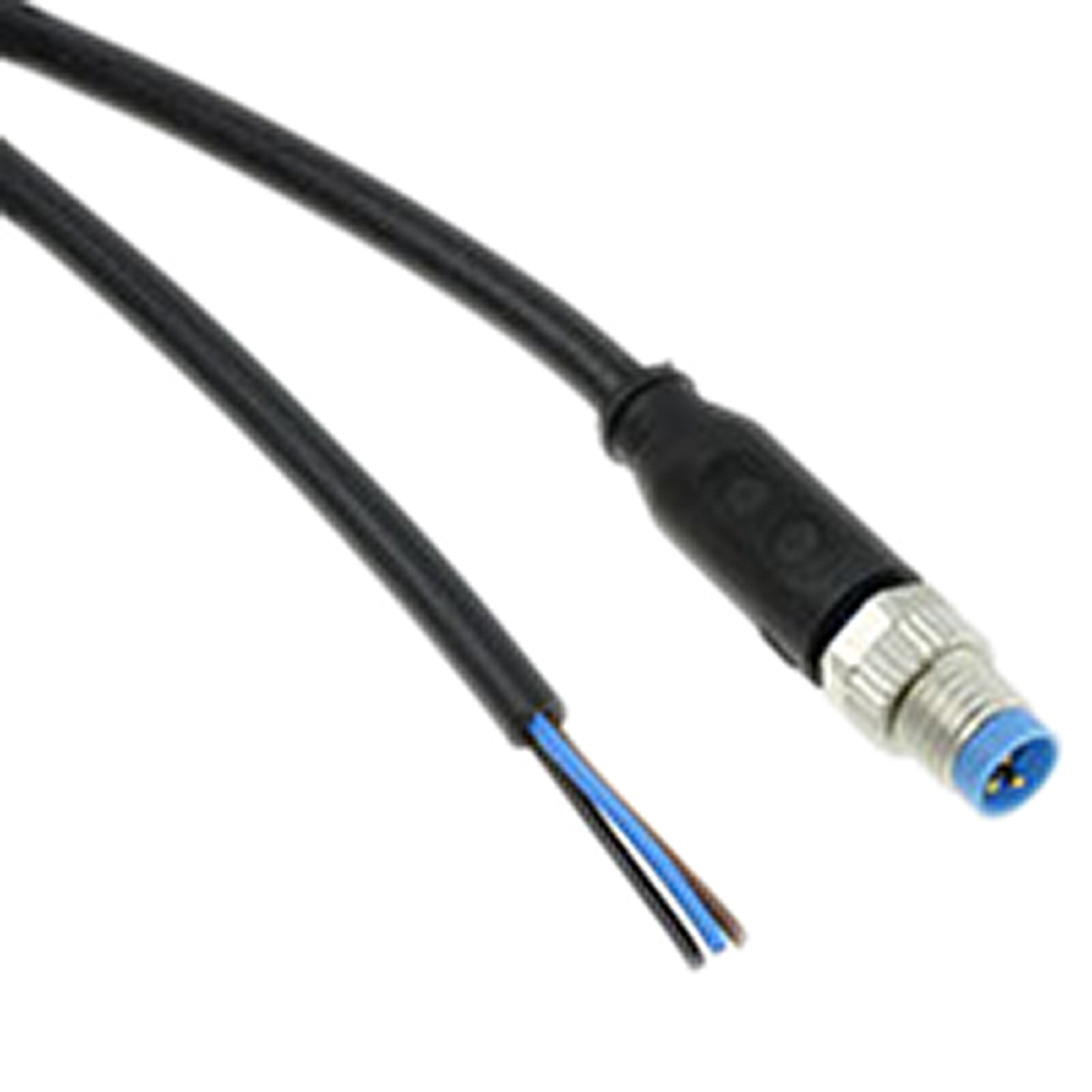

| Connector 1 | M8 |
| Connector 1 Gender | Male |
| Connector 1 Number of Contacts | 3 |
| Connector 2 | Unterminated |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 60 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP65 |
| Minimum Operating Temperature | -40°C |
| Connector 1 Housing Gender | Male |
| Insulation Material | PP |
| Operating Temperature Range | -40 → +80 °C |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 4.1mm |
| Minimum Bend Radius | 41 mm |
| Maximum Operating Temperature | +80°C |
| Cable Shape | Multicore |
| Standards Met | CSA, ELV Compliant, RoHS, UL |
