คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 40 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±125mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIL 24 |
| Isolation Voltage | 3kV ac |
| Depth | 10.5mm |
| Length | 31.8mm |

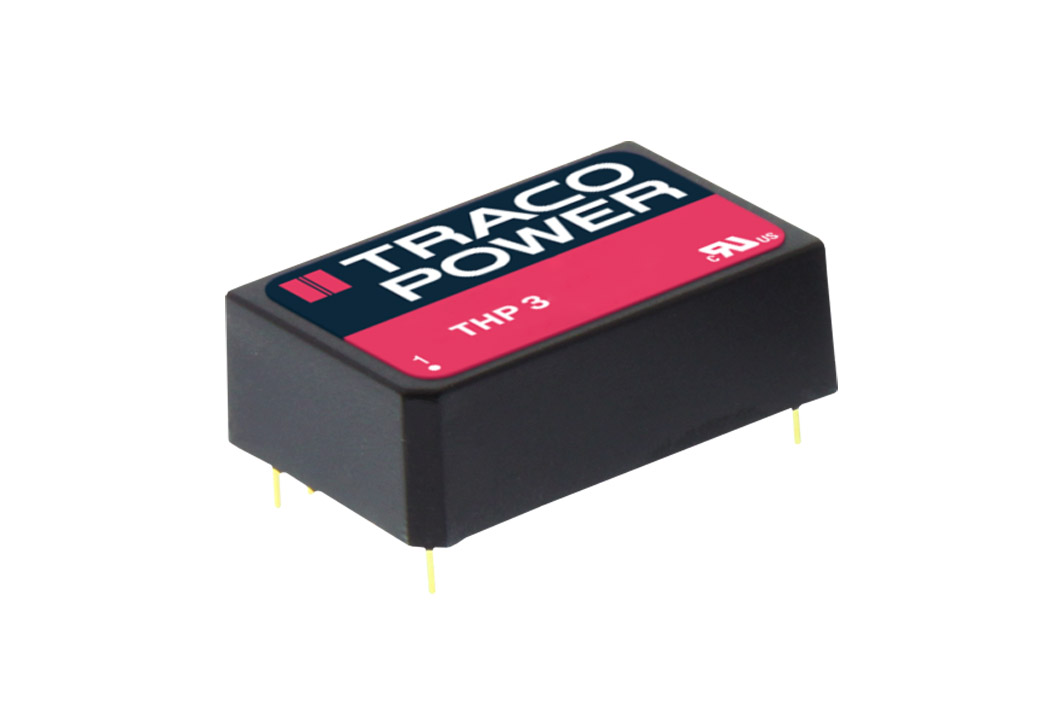

| Series | THP 3 |
| Railway Approved | No |
| Load Regulation | 0.01 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 83% |
| Medical Approved | Yes |
