คุณสมบัติ | รายละเอียด |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 10W |
Input Voltage Nominal | 24 V dc |
Output Current | 2A |
Mounting Type | PCB |
Isolated | Yes |
Number of Outputs | 2 |
Output Voltage Adjustment Range | ±10% |
Package | 2 x 1 in |
Isolation Voltage | 3'000V dc |
Length | 25.4mm |
Depth | 50.8mm |
Width | 11mm |

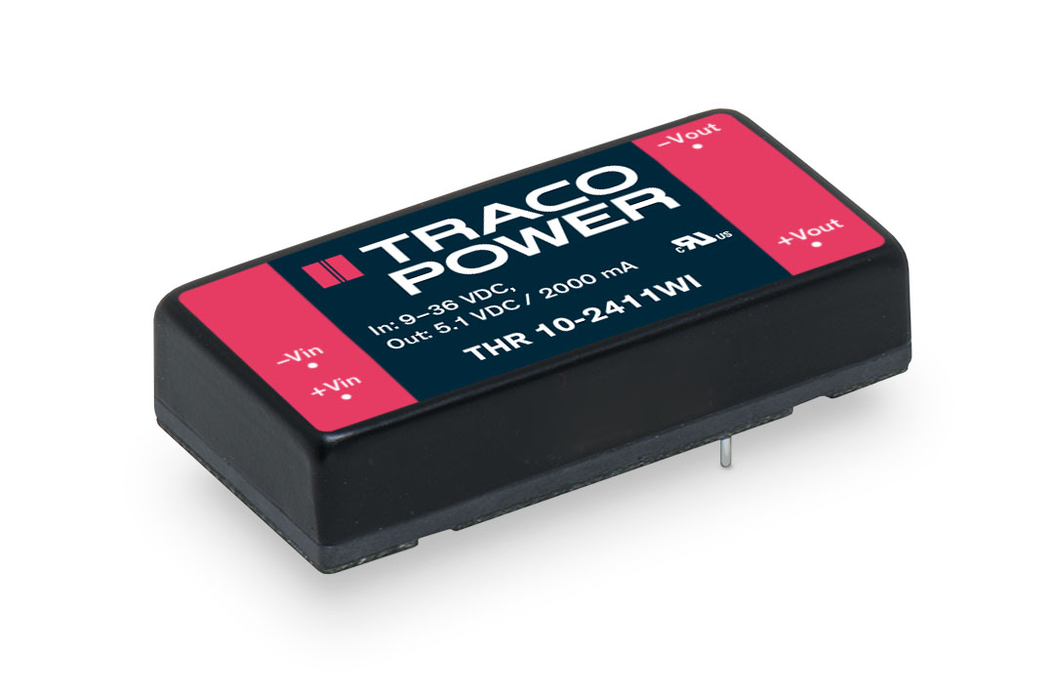

Series | THR 10WI |
Railway Approved | No |
Load Regulation | 0.5% |
Standards Met | UL 60950-1 |
Maximum Temperature | +90°C |
Medical Approved | No |
Efficiency | 84% |
Minimum Temperature | -40°C |
