คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 9 → 36 V dc |
| Power Rating | 6W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 250mA |
| Mounting Type | Chassis Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | Encapsulated |
| Isolation Voltage | 3kV dc |
| Depth | 26.5mm |
| Width | 34mm |
| Length | 53mm |

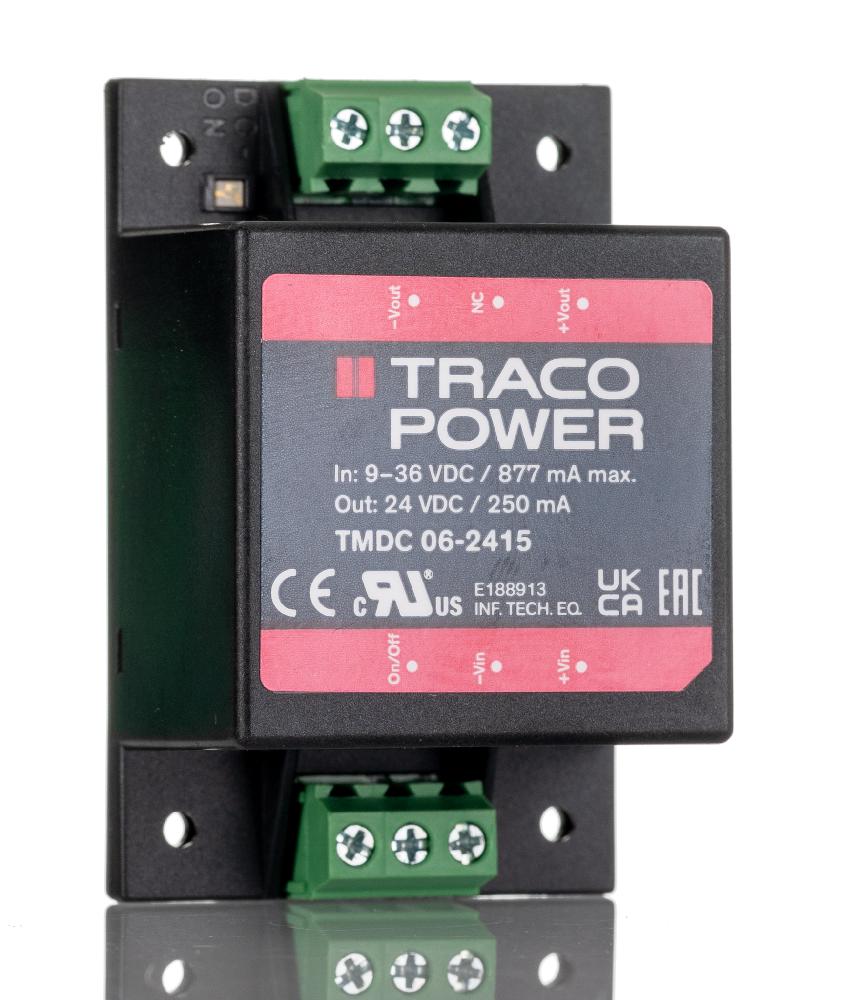

| Series | TMDC 06 |
| Load Regulation | 0.005 |
| Maximum Temperature | +93°C |
| Efficiency | 85% |
| Minimum Temperature | -40°C |
| Standards Met | EN 62368-1, IEC 62368-1 |
