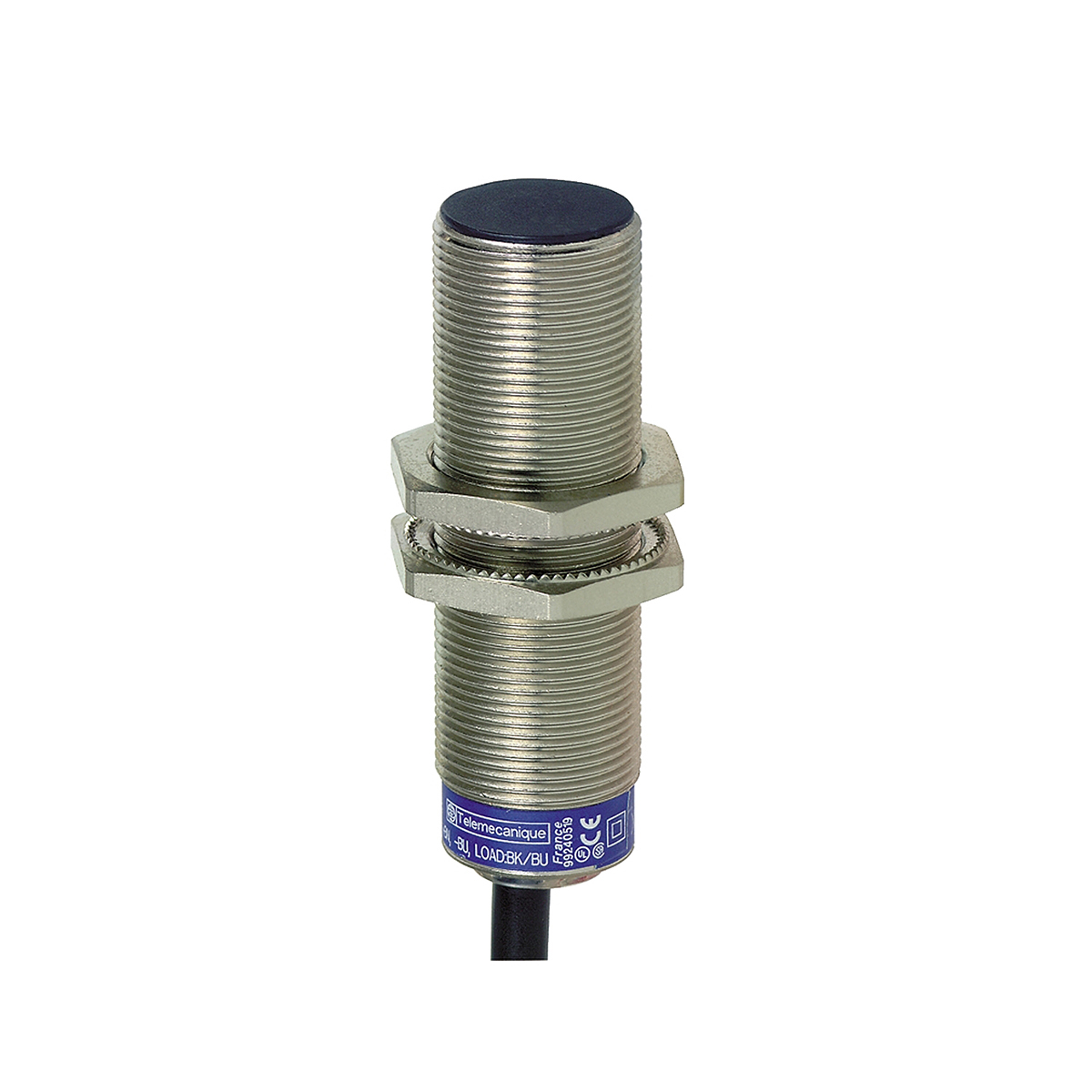

คุณสมบัติ | รายละเอียด |
|---|---|
| Thread Size | M18 |
| Sensor Technology | Inductive |
| Body Style | Barrel |
| Detection Range | 8 mm |
| Output Function | NO |
| Digital Switching Output Type | PNP |
| Connection Type | Pre-Cabled |
| Cable Length | 2m |
| Supply Voltage | 10 - 58 V dc, 12 - 48 V dc |
| IP Rating | IP68, IP69K |
| Length | 62mm |
| Mounting Type | Flush |
| Housing Material | Brass Nickel Plated |
| Maximum DC Voltage | 58V |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200 mA |
| Shielding | Shielded |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 1kHz |
| Switching Frequency | 1 kHz |
| Standards Met | CE, CSA, E2, UL |
| Series | OsiSense XS |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
