คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 3.3V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 400mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 8 |
| Isolation Voltage | 1.5kV dc |
| Depth | 8mm |
| Width | 14mm |
| Length | 14mm |

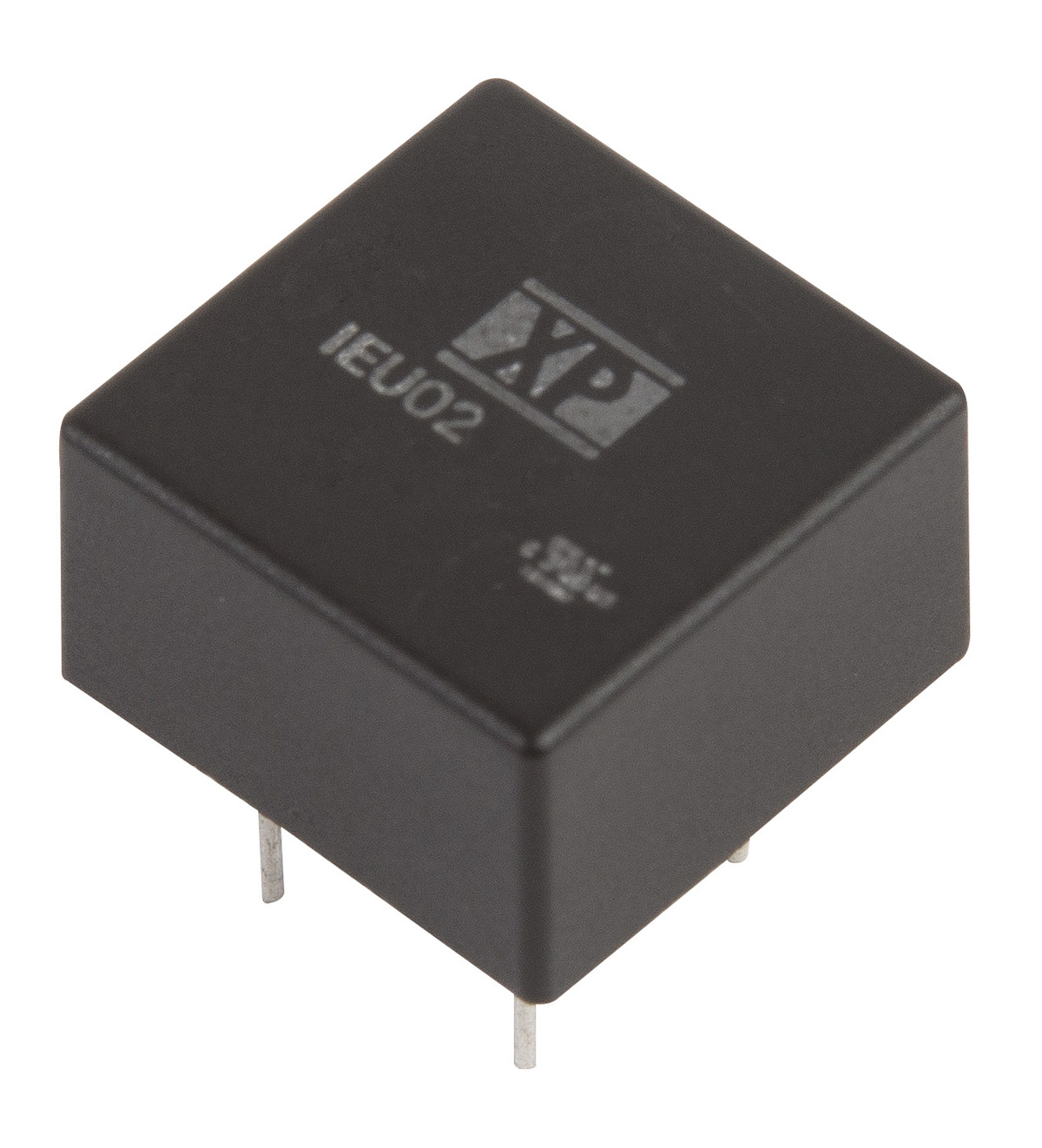

| Series | IEU02 |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +95°C |
| Standards Met | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60950-1, ITE, UL/cUL60950-1 |
