คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | -9 V dc, 15V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 24 V dc |
| Output Current | -55 mA, 33mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP 7 |
| Isolation Voltage | 6kV dc |
| Width | 9.8mm |
| Length | 19.5mm |
| Depth | 12.5mm |

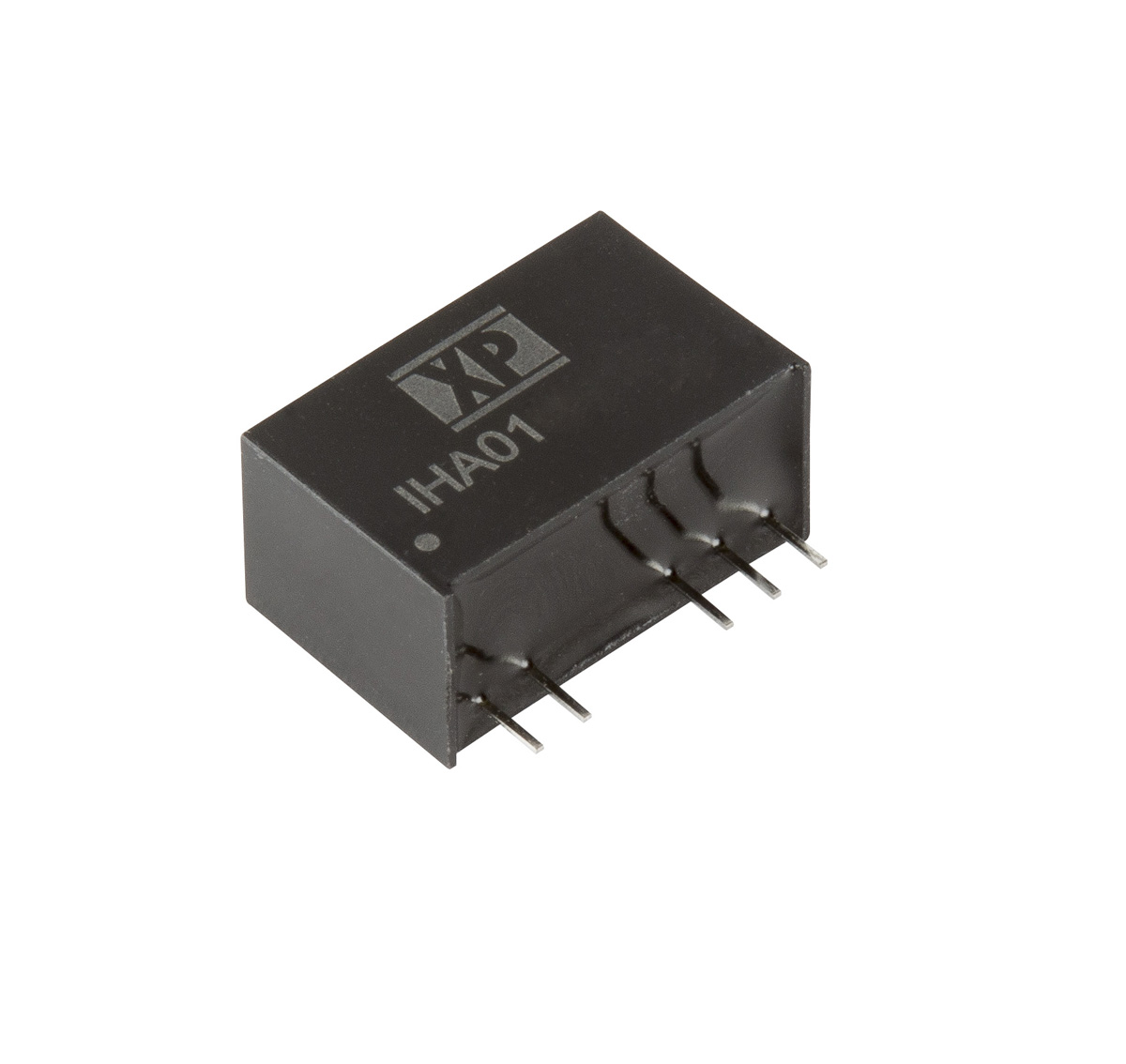

| Series | IHA01 |
| Load Regulation | 0.1 |
| Minimum Temperature | -40°C |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Maximum Temperature | +85°C |
