คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Power Rating | 15W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 1.3A |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | 1 x 1 in |
| Isolation Voltage | 1.6kV dc |
| Length | 25.4mm |
| Width | 25.4mm |
| Depth | 9.9mm |

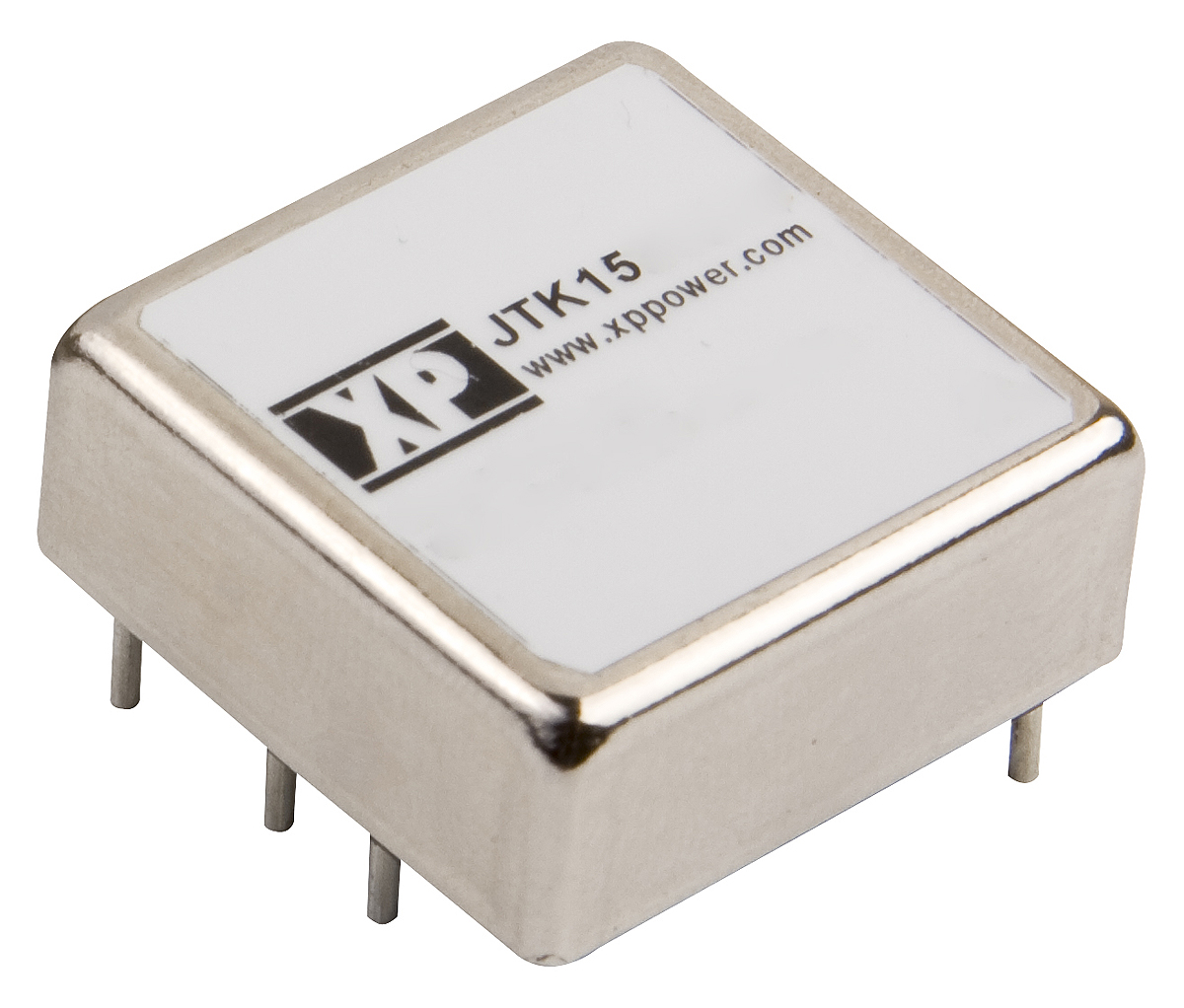

| Series | JTK |
| Load Regulation | ±0.5% |
| Maximum Temperature | +100°C |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Minimum Temperature | -40°C |
CC6-0512SF-E
TMR 3-2423WISM
