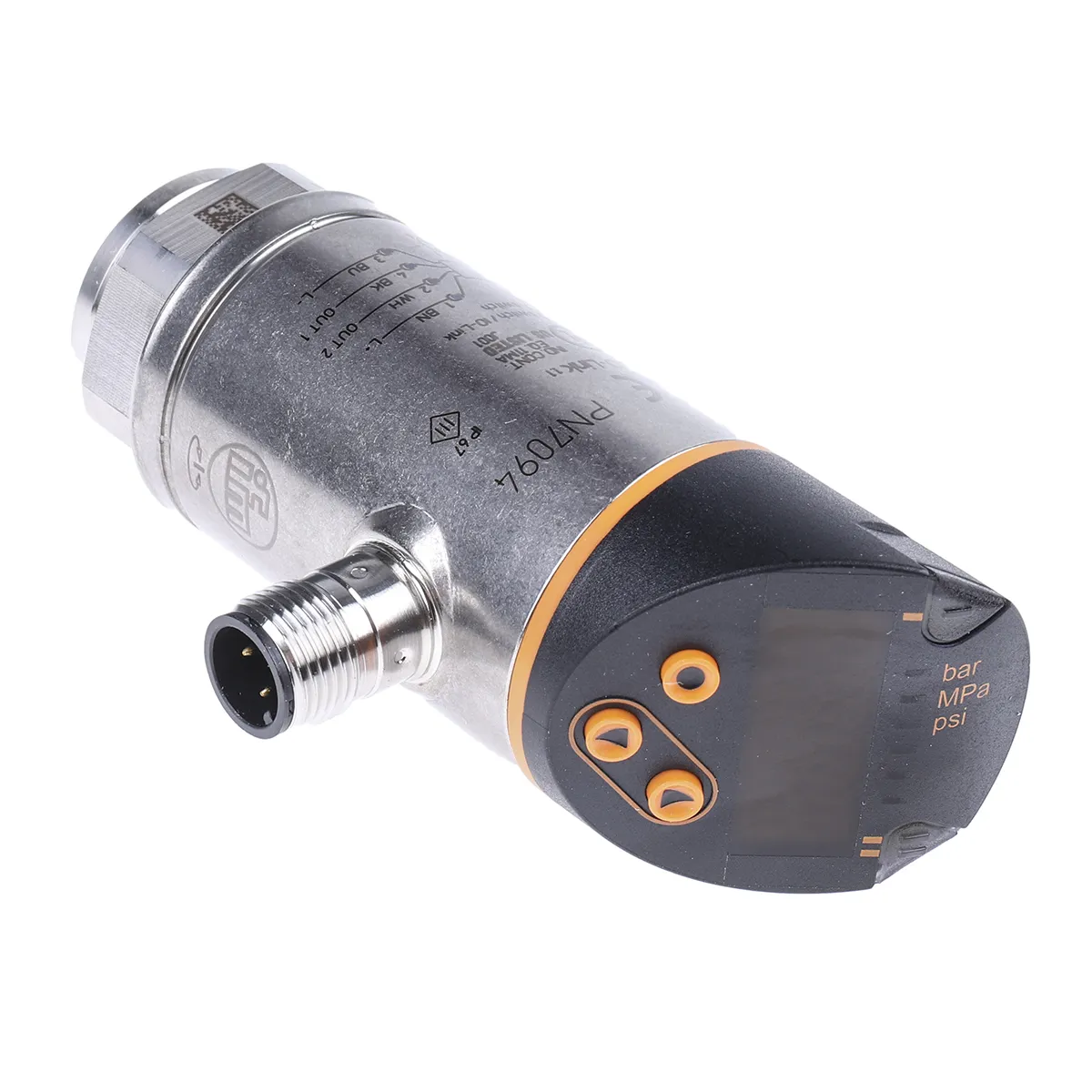

รายละเอียดสินค้า / Product Details
คุณสมบัติ | Value |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | -1bar |
Maximum Pressure Reading | 10bar |
Accuracy | ±0.5 % |
Output Type | NPN, PNP, 2NO/NC Programmable |
Media Measured | Fluid |
Process Connection | G1/4 |
Electrical Connection | M12 Connector |
Response Time | 3 (Minimum Switching Output) ms |
Maximum Current | 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C |
Supply Voltage | 18 → 30 V dc |
Interface | IO-Link |
Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel |
IP Rating | IP65, IP67 |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -25°C |
