คุณสมบัติ | รายละเอียด |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 10W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 2A |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP-16 |
| Isolation Voltage | 1kV dc |
| Depth | 8mm |
| Width | 13.7mm |
| Length | 23.8mm |

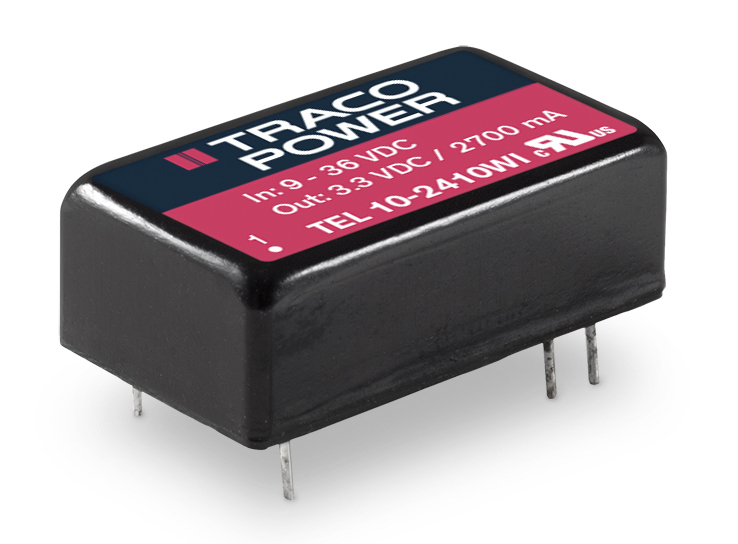

| Series | TEL 10WI |
| Load Regulation | 0.01 |
| Maximum Temperature | +80°C |
| Standards Met | EN 55032, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 |
| Minimum Temperature | -40°C |
