คุณสมบัติ | รายละเอียด |
---|---|
Monitoring Application | Temperature |
Contact Configuration | SPDT |
Mounting Type | DIN Rail |
Time Delay | <100ms |
Temperature Sensitivity | Overtemperature, Winding Temperature |
Hazardous Area Certification | ATEX |

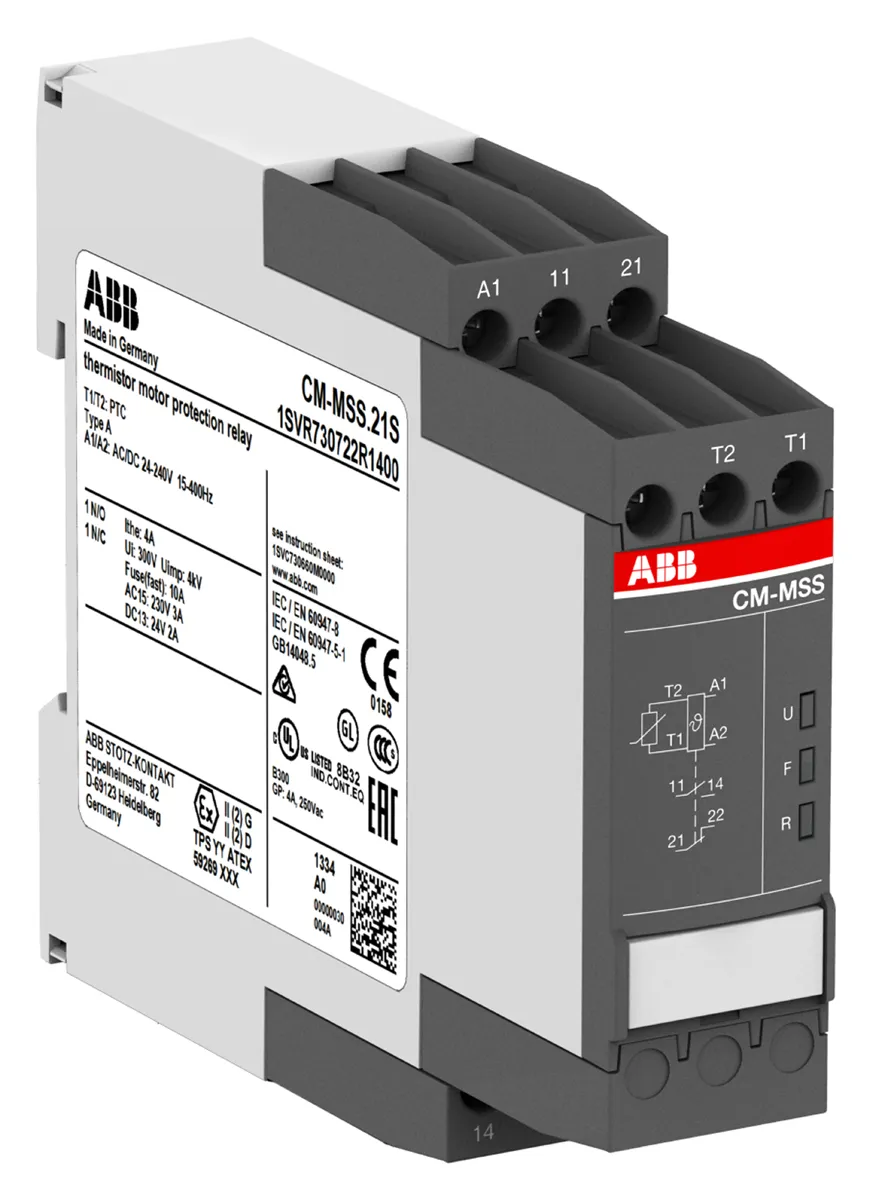

Series | CM-MSS |
Minimum Operating Temperature | -25°C |
Height | 85.6mm |
Width | 22.5mm |
Maximum Operating Temperature | +60°C |
Special Features | Automatic Reset, Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Short-Circuit Monitoring of the Sensor Circuit |
Dimensions | 103.7 x 22.5 x 85.6mm |
Operating Temperature Range | +60°C |
Current Range | Maximum of 3.7mA |
Length | 103.7mm |
Terminal Type | Screw |
